Introduction

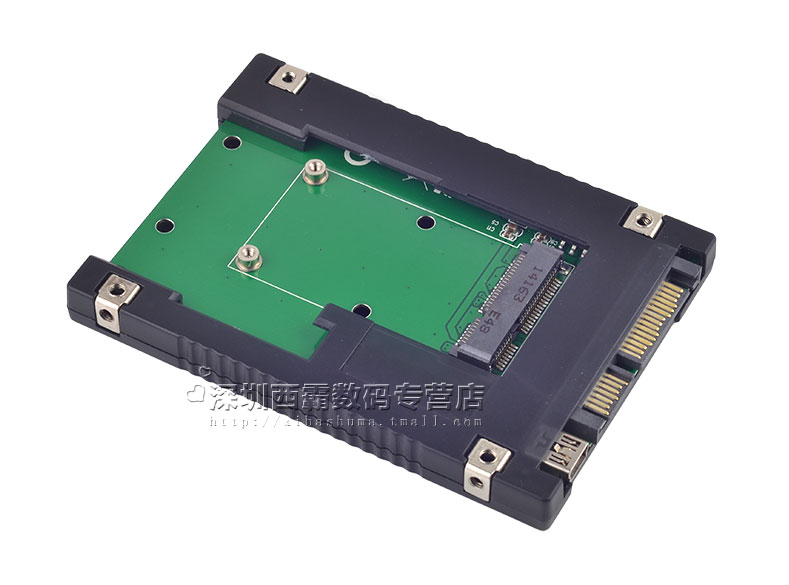

This 2.5'' SATA to mSATA SSD adapter is an economical choice to use Intel mSATA SSD as a 2.5'' SATA storage device. Once being installed into PC/laptop, the Intel mSATA SSD appears as an ordinary SATA storage to any OS and can be configured as a bootable device. Additionally, this adapter can also support USB-type mSATA SSD.

Features and Specification
 Standard 2.5'' SATA storage device form factor (100.2mm x 69.9mm x 9.8mm)
 Transparent to OS and does not require any driver
 Complies with Serial ATA 1.0a specification (SATA mode)
 Supports SATA III (1.5Gbps, 3.0Gbps and 6.0Gbps) host interface (SATA mode)
 Supports hot swap
 Can be a primary bootable device containing the OS and applications
 Complies with USB 2.0 specification (USB mode)
 Compatible to Intel-type mSATA SSD (mSATA Interface)
 Compatible to USB-type mSATA device (mSATA Interface)

Package Contents
 2.5'' SATA to mSATA SSD Adapter x 1
 User’s manual x 1

Model
